Row fertilizer applicator BBN
This row fertiliser is suitable for various types of fertiliser (limestone, coated fertiliser, etc).
Operating procedure
The machine consists of a stainless steel fertiliser bucket with the desired number of spouts. This mounted on a wheel frame with injection or guide pipes. Under the fertiliser bucket are cam wheel units. These are driven by one of the wheels, so the dosing is always correct. One driven cam wheel unit per outlet, whose take-up width is centrally adjustable. It is also possible to adjust each cam wheel unit individually.
General specifications
| Working speed | up to approx. 7 km/hour |
| Dosage per outlet | 300 kg/ha |
Optional
- Fertiliser bucket can also be hydraulically driven if required.
- Fertiliser buckets are also available separately.
- Dividing cones for even distribution across the entire planting bed width.
- Cambridge roller
- Agitator for organic fertilisers
Common configurations

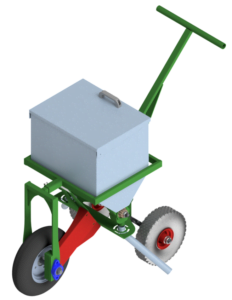

BBN\K40X30V2U
| Stainless steel fertiliser bucket dimensions | 500 x 500 mm |
| Number of outlets | 2 |
| Number of beds | 1 |
| Content | 100 litres |

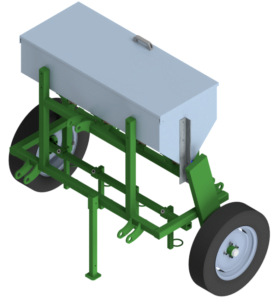

BBN\F120
| Stainless steel fertiliser bucket dimensions | 1200 x 500 mm |
| Number of outlets | 4 |
| Number of beds | 1 |
| Content | 240 litres |
BBN\F250
| Stainless steel fertiliser bucket dimensions | 2500 x 500 mm |
| Number of outlets | 6 |
| Number of beds | 2 |
| Content | 450 litres |
