Plant pressing machine BPW
This pressure trolley is intended for planting and/or pressing plants in planting holes on a foil-covered backing for strawberry cultivation in particular.
Operating procedure
The planting trolley drives over the bed. The first pair of red balloon wheels press the planting holes through the sides. The second pair of balloon wheels press the plants via the top. This secures the plant in the soil. The pressure wheels are designed to follow the bed and absorb any steering movements. In the version with seat and plant rack, the plant is first planted manually and then immediately pressed.
General specifications
| Capacity | 3000 meters per hour |
Optional
- Seats
- Plant rack
Common configurations

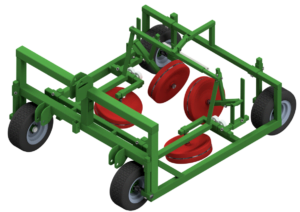

BPW\R65K
| With of the bed | 65 cm |
| Number of seats | 0 |
| Linkage | 3-Point linkage cat. 2 |
| Weight | 600 kg |
| Power requirement | 30 hp |

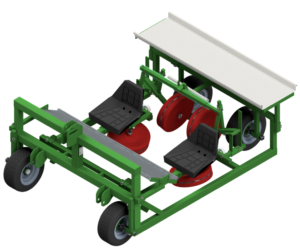

BPW\R65
| With of the bed | 65 cm |
| Number of seats | 2 |
| Linkage | 3-Point linkage cat. 2 |
| Weight | 600 kg |
| Power requirement | 30 hp |

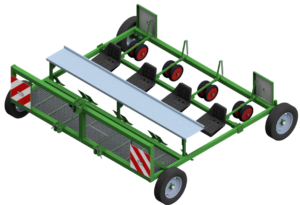

BPW\4X75
| width of ridge | 30 cm |
| Distance center to center | 75 cm |
| Number of seats | 4 |
| Linkage | 3-Point linkage cat. 2 |
| Weight | 500 kg |
| Power requirement | 40 hp |

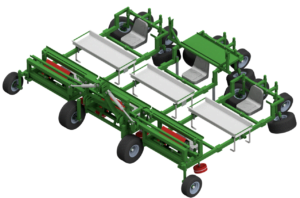

BPW\3XR65
| With of the bed | 65 cm |
| Distance center to center | 150 cm |
| Number of seats | 6-8 |
| Linkage | 3-Point linkage cat. 2 |
| Weight | 1000 kg |
| Power requirement | 50 hp |
| Hydraulics | 1 double acting valve, 20 l/min |
